Name: CQ620AT DUAL CHANNEL OSCILLOSCOPE
SKU: 117107
Price: 428.00 EUR
Availability: BackOrder

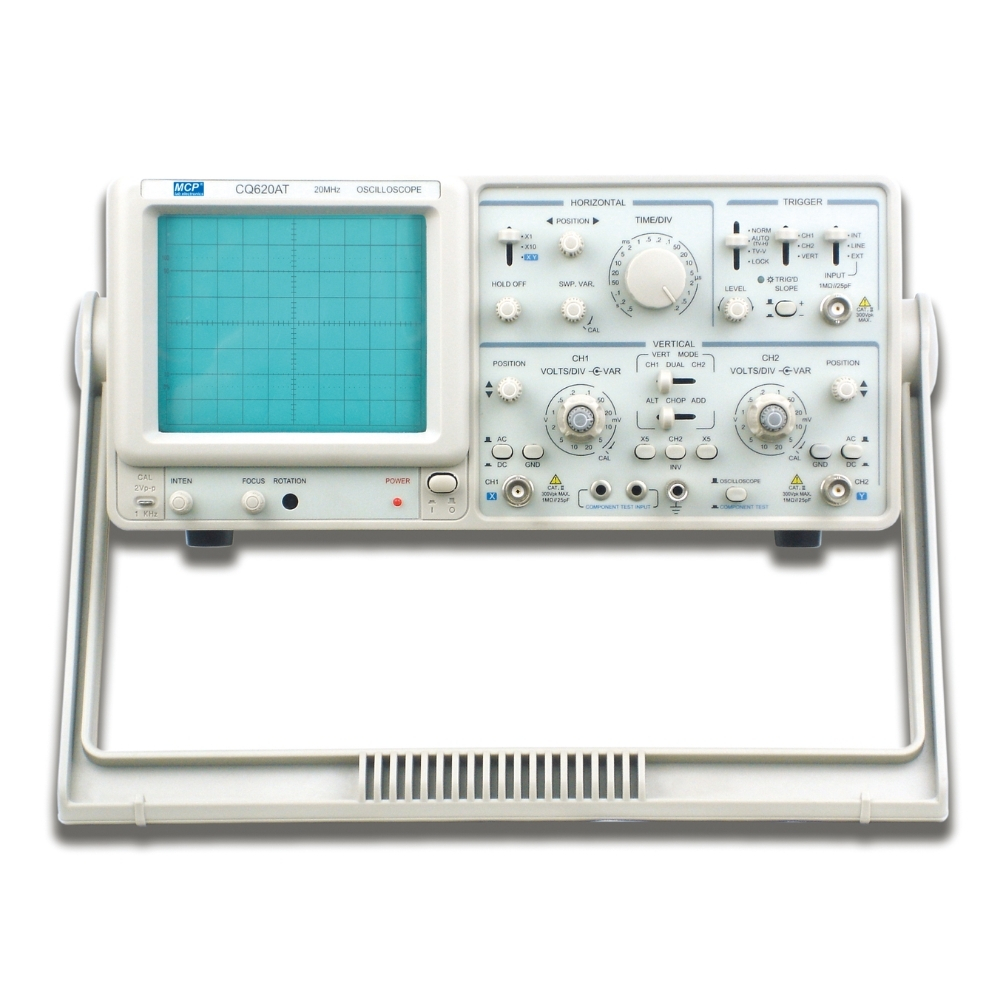

CQ620AT DUAL CHANNEL OSCILLOSCOPE

428.00€ (526.44€ Tax Included)

Dual channel oscilloscope.

Delivery time: 3-6 weeks

Ask about this product

Categories: OSCILLOSCOPESSKU: 117107

Features
.Expanded vertical sensitivity to 20V/div
.Component testing function: resistor, capacitor, inductor
.20MHz dual channel
.High sensitivity: 1mV/div
.ALT triggering function
.Z-Axis input,CH1 output(optional)
.Encoder for sweep
.10 times sweep magnification
.Triggering level lock function, automatic synchronize function

Catalog Number	117107

Specifications

Technical Data	CQ620AT
CRT	Type	6-inch rectangular with internal graticule 8×10div (1div=1cm)
	Z-Axis input	Zin. ≈47kΩ , Vin. ≥5Vp-p, Bw. DC~2MHz
	Accelerating voltage	Approx. 2kV
	Illumination	Front panel control
Vertical	Sensitivity	×1	±3%,5mV~20V/div on 1-2-5 sequence 12 rangers
		×5	±5%,1mV~4V/div on 1-2-5 sequence 12 rangers
	Bandwidth	×1	DC (AC 10Hz) ~20MHz (-3dB)
		×5	DC (AC 10Hz) ~7MHz (-3dB)
	Rise time	×1/×5	≤17.5ns/ ≤50ns
	Input impedance	≈1MΩ ±3%/ 25PF±5PF
	Max. input voltage	400V (DC + ACp-p) at 1kHz
	Input coupling	AC, DC, GND
	Vertical operation mode	CH1, CH2, ALT, CHOP, ADD, CH2 INV
Horizontal	Sweep time	0.2 μ s~0.5 s / div±3%; MAG×10:20ns ~ 50ms /div ±5%
	Sweep time accuracy	±3%, ±5% at ×10MAG (20ns~50ns/DIV uncalibrated)
	Sweep magnification	10 times
	Max sweep time	20ns/div
	Linear	±5%, ±10% at ×10MAG
Trigger	Trigger mode	AUTO(TV-V),NORM,TV-H, LEVER LOCK
	Trigger source	CH1, CH2, ALT, LINE, EXT, VERT
	Trigger coupling	AC
	Trigger slope	“+” or “-“
	Trigger sensitivity		5Hz~10MHz	10MHz~20MHz
		CH1,CH2	1DIV	1.5DIV
		ALT	2.0DIV	3.0DIV
		EXT	200mV	300mV
		TV sync pulse >2DIV or 0.5V (EXT)
	External trigger input	Input impedance:	1MΩ ±3%, 25pF±5pF
		Max. input voltage:	400V (DC+ACpeak) at 1kHz
X – Y	Sensitivity	5mV~5V/div, ± 4%
	X-axis bandwidth	DC ~500kHz
	Phase error	≤3° DC ~ 50kHz
Output signal	CH1 signal output	√
	Calibrator output	1kHz square wave, 2Vp-p±2%
Power source	AC 110/220V±10%, 50Hz/ 60Hz, ≈40W
Dimensions	310(W) ×145(H) × 440(D) mm
Weight	Approx. 8kg
Accessories	One operation manual, one fuse, onepower cable, two probes
