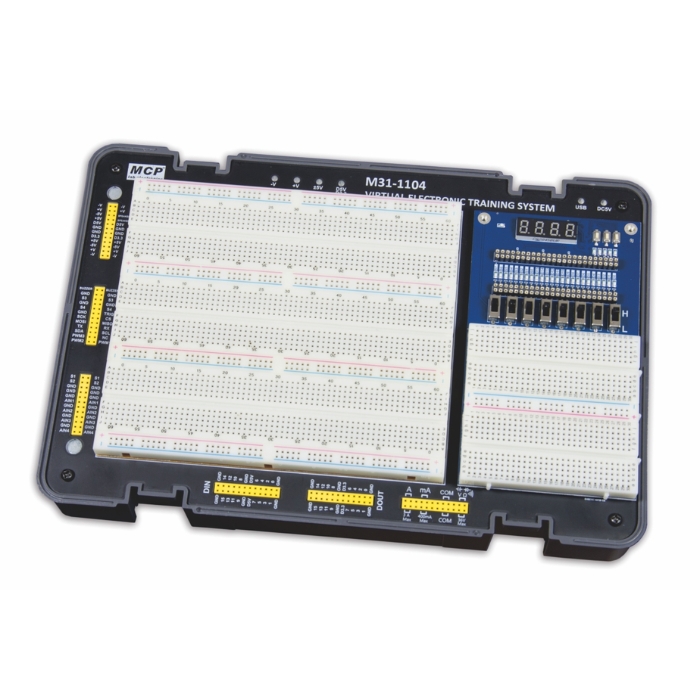

Name: M31-1000 SERIES VIRTUAL ELECTRONIC TRAINING SYSTEM
SKU: 301
Price: 1250.00 EUR
Availability: InStock

M31-1000 SERIES VIRTUAL ELECTRONIC TRAINING SYSTEM

€1,250.00

Virtual electronic training system.

Models

Ask about this product

Categories: BREADBOARDS & TRAINING SYSTEMSSKU: N/A

Description
Specifications

Features:

Max. 50MHz bandwidth, 100MSa/s sampling rate (Oscilloscope)
Max. 30MHz sine wave output (Signal generator)
Arbitrary waveform output
16 channel digital input output
Digital multimeter
Office report, source data save
USB2.0 interface, no external power source required,easy to use
Operating system: Windows 7 or above
Easy to carry

Specifications

Technical Data		M31-1004	M31-1002
Oscilloscope	Channels	4	2
	Sampling rate	100MSa/s@4CH , 200MSa/s@2CH	100MSa/s
	Bandwidth	50MHz
	ADC resolution	12bit
	Time base range	10ns~10s
	Vertical resolution	10mV/div~5V/div
	Input coupling	AC/DC
	Max. input voltage	±25V
	Vertical resolution(Accuracy)	10mV/div ~ 5V/div (±1%)
	Trigger mode	Auto, normal and single
	Trigger source:	CH1~CH4	CH1~CH2
	Trigger level adjustable	Yes
	Math	＋, －, ×, ÷, FFT
Signal generator	Channels	4 (2 Main channel, 2 secondary channel)	2
	DAC resolution	12bit
	Max. frequency (sine)	30MHz (Main channel), 50KHz (Secondary channel)	20MHz
	Wave form	Sine, Triangle, Square, DC, Arbitrary
	Output range	±0.5mV~±5V
Spectrum analyzer	Channel	1
	ADC resolution	12bit
	Bandwidth	50MHz
	Sampling rate	100MSa/s
	Voltage range	±25V
	Auto measuring	Frequency, SNR, THD, V-Peak
	Other measuring	Hanning, B-H, RMS, Peak Hold
Logical analyzer	Channels	16
	Max. Input voltage	5V
	Max. Sampling rate	50MSa/s@4CH, 20MSa/s@8CH, 10MSa/s@16CH
	Max. Sampling depth	1000 points / 500s
Pulse generator	Channels	16
	Refresh rage	10MSa/s
	Output signal level	3.3V, 5V
	Inner/Ext. Trigger select	Yes
Digital multimeter	Voltage range / Accuracy	0.1mV~36V / 1%
	Current range / Accuracy	0.1uA~600uA / 1%, 0.1mA~400mA / 1%, 100mA~3A / 1%
	Resistance range / Accuracy	0.1Ω~40MΩ / 1%
	Capacitor range / Accuracy	0.1nF~4mF / 2%~5%
Power output	Output range	±2.0V~±15V, fixed ±5V, fixed 3.3V
	Rated current	±700mA (±2.0V~±15V), 700mA (fixed+5V), -100mA (fixed-5V), 600mA (fixed 3.3V)
	Protection	Shout cut / over current
Interface		USB 2.0
Power source		USB
Dimensions (W×H×D)		290×40×195 mm
Weight		1.5kg
