M50-SP SERIES PROGRAMMBLE POWER SUPPLY WITH PC CONTROL INTERFACE
€242.00 – €286.00
M50 series are easy-use programmable linear DC power supply.
Categories: PROGRAMMABLE POWER SUPPLIESSKU: N/A
Features:
- Single output
- Output off function
- LED digit foe display and setting
- Standard interface USB
- Constant voltage and constant current
- Aluminium alloy panel
Specifications
Line regulation | CV1×10-4+3mV | CC 2×10-3+3mA |
Load regulation | CV1×10-4+4mV | CC 2×10-3+5mA |
Ripple & noise | CV 3mVrms | CC 3mArms |
Display accuracy | Voltmeter ±(0.2%Rdg+2digits)
Ammeter ±(1.0%Rdg+2digits) |
|
Input voltage | 110~127VAC ± 10% 60Hz, 220~240±10% 50Hz Switchable |
Model | Voltage | Current | Dimensions(LxWxD) | Weight (kg) |
---|---|---|---|---|
M50-SP202E | 0~20V | 0~3A | 132x160x270mm | 5 |
M50-SP303E | 0~30V | 0~3A | 132x160x270mm | 5 |
M50-SP305E | 0~30V | 0~5A | 132x160x270mm | 6 |
Catalog Card
DownloadRelated products
M10-DC152 SYMMETRICAL 0~+15V 0~-15 ADJUSTALBE DC POWER SUPPLY
€172.00 (€211.56 Tax Included)
Out of stock
M10-AD330M-5 STEP-BY-STEP AC AND RECTIFIED DC POWER SUPPLY
€124.00 (€152.52 Tax Included)
Out of stock
M10-QP100 QUAD INDEPENDENT ADJUSTABLE OR SYMMETRIC DC POWER SUPPLY
€366.00 (€450.18 Tax Included)
S7-1202A VOLTAGE ADJUSTABLE LOW POWER SWITCHING POWER SUPPLY
€66.00 (€81.18 Tax Included)

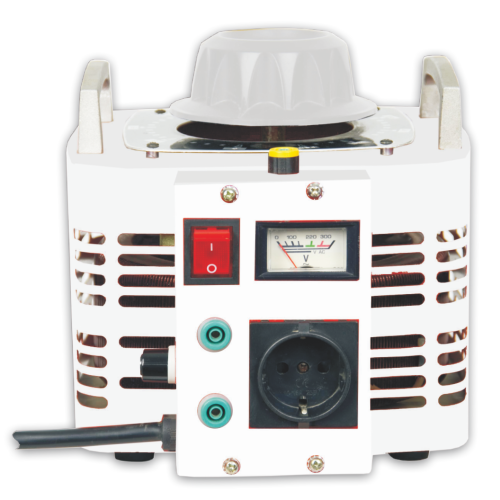

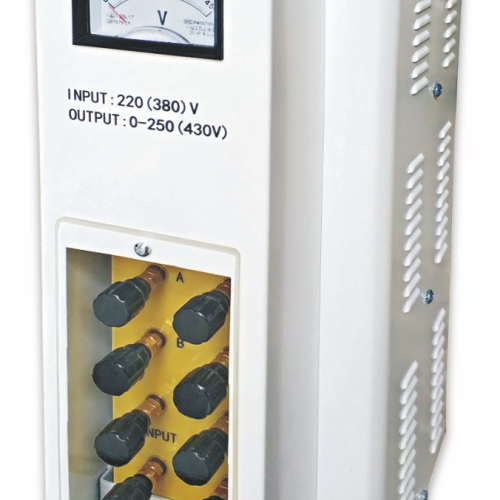

M10-500 SERIES ADJUSTABLE AUTOTRANSFORMER
