Motor Speed Measuring System – TM-10000 & TG Series
The Motor Speed Measuring System by MCP combines the TM-10000 tachometer and TG Series DC tachogenerators into a complete, accurate solution for measuring and displaying motor speed. It converts the tachogenerator’s DC voltage into a direct RPM reading, providing reliable feedback for test benches, laboratories, and automation setups.
System Overview
The system consists of two complementary components: a DC tachogenerator that generates a continuous voltage proportional to motor speed, and a TM-10000 tachometer that interprets this signal and displays the rotation speed in RPM. Together, they create a robust, precise measurement setup suitable for MCP motors from 150 W to 1000 W.
Key Features
- Complete motor speed measurement system for analog signal and display
- Tachogenerator output: 0–160 V DC proportional to motor speed
- Tachometer display range: 0–6000 rpm
- Accurate and linear feedback for automation and control systems
- Compatible with TG-120, TG-300, TG-600 and TG-1000 tachogenerators
- Ideal for test benches, training setups and speed regulation systems
TM-10000 Tachometer
- Input voltage: 0–160 V DC
- Display: LED, 0–6000 rpm
- Dimensions: 170 × 135 × 70 mm
- Converts tachogenerator voltage into a readable RPM display
TG Series DC Tachogenerators
- Models: TG-120, TG-300, TG-600, TG-1000
- Output voltage: 0–160 V DC
- Max current: 200 mA
- Power: 32 W
- Max speed: 6000 rpm
- Compatible motors: 150–1000 W
- Shaft heights: 63 / 75 / 80 / 95 mm
Applications
- Motor speed monitoring and control
- Educational and training laboratories
- Automation and testing benches
- Performance measurement of AC/DC motors
Advantages
- Linear voltage-to-speed conversion with high accuracy
- Simple integration with existing motor systems
- Durable and industrial-grade design
System Working Principle

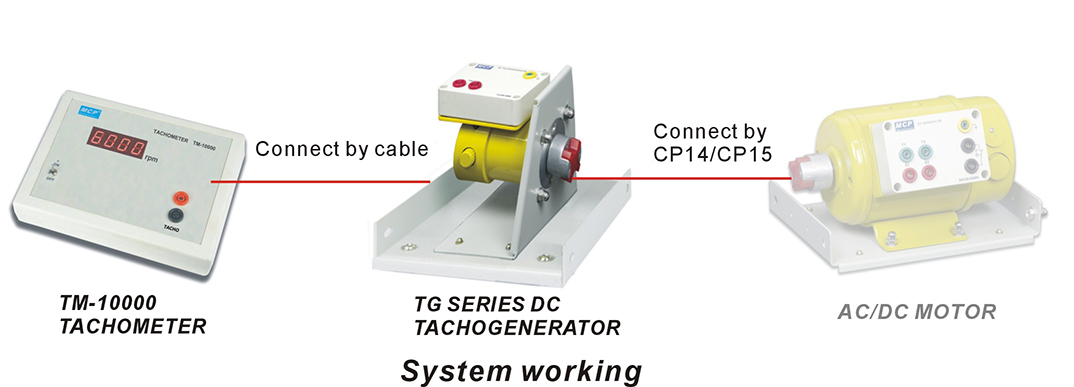

The diagram below shows the connection between the TM-10000 tachometer, TG Series DC tachogenerator and the motor. The tachogenerator produces a voltage proportional to motor speed, which the tachometer converts into a precise RPM display.
Summary
The Motor Speed Measuring System offers a straightforward, precise way to measure and visualize motor speed. Designed and manufactured by MCP, it provides consistent accuracy and long-term reliability in laboratory, training, and automation environments.
