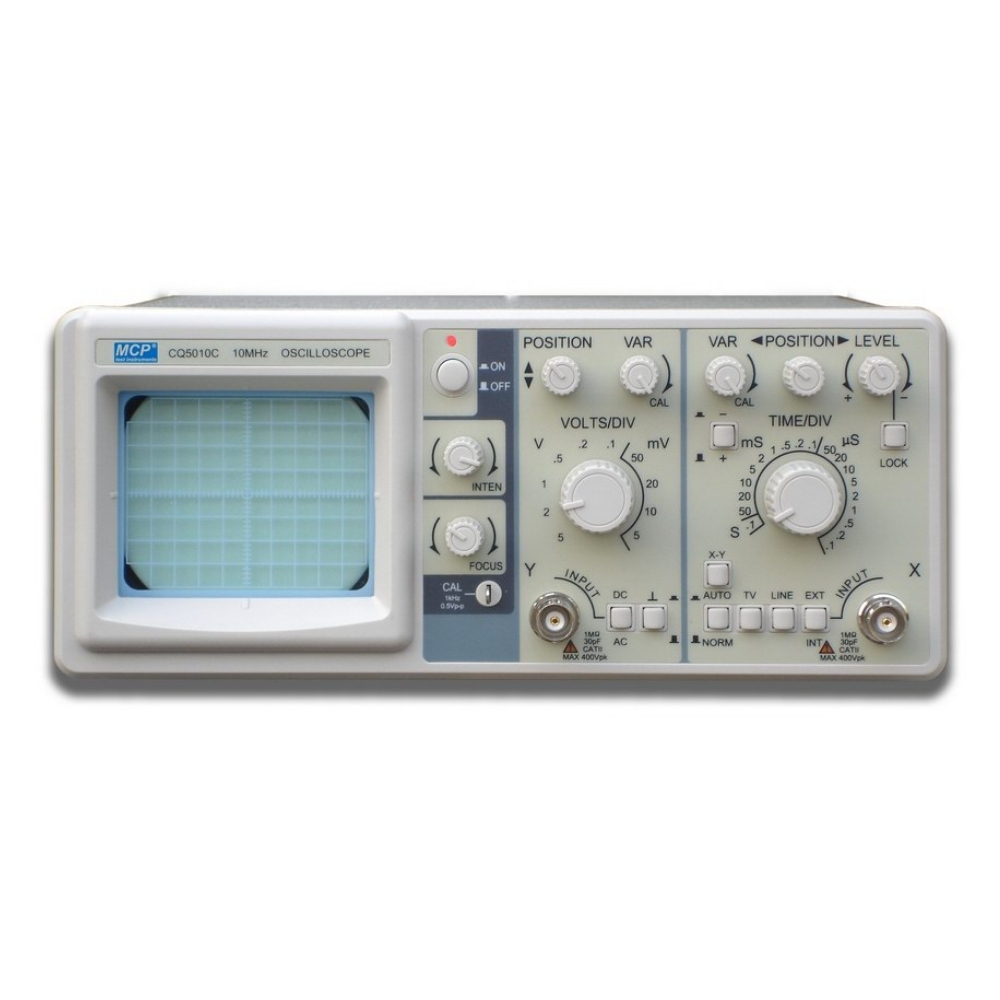

Name: CQ5010C SINGLE CHANNEL OSCILLOSCOPE
SKU: 117099
Price: 208.00 EUR
Availability: OutOfStock

Out of stock

CQ5010C SINGLE CHANNEL OSCILLOSCOPE

€208.00 (€255.84 Tax Included)

single channel oscilloscope.

Out of stock

Categories: OSCILLOSCOPESSKU: 117099

Features

Catalog Number	117107

Specifications

Technical Data	CQ5010C
CRT
Type	3″ round
Display area	8 x 10DIV (1DIV=6mm)
Lightering color	Green
Potential	1.3kV
VERTICAL SYSTEM
Sensitivity	5mV / DIV~5V / DIV ±3%
Width of band (-3dB)	DC: 0~10MHz AC: 10Hz~10MHz
Max. Input Voltage	400V (DC + ACpeak)
Input Coupling	AC, DC , GND
Input Impedance	1MΩ±3% 30pF±5pF
Trimming ratio	2.5 : 1
HORIZONTAL SYSTEM
Sweep time	0.1S / DIV ~ 0.1µS / DIV ±3%
Trimming ratio	2.5:1
TRIGGER SYSTEM
Mode	AUTO, NORM, TV
Source	INT, LINE, EXT
Polarity	“+” or “-“
Trigger sensitivity	INT: 1DIV, EXT: 0.3V, TV: 2 DIV
External trigger input	Input impedance: 1MΩ±3% 25pF±5pF Max. input voltage: 160V (DC+ACpeak)
X-Y OPERATION
Sensitivity	X: 0.5V / DIV Y: 5mV / DIV ~ 5V / DIV
Width of band (-3dB)	DC: 0-1MHz AC: 10Hz – 1MHz
Phase difference	≤3° (DC ~ 50kHz)
CALIBRATION
Source	1kHz±2% 0.5Vp-p±2% square wave
POWER SOURCE	110~127 VAC±10%, 220~240VAC±10% 50Hz±2Hz, 60Hz±2Hz
ACCESSORIES	Instruction manual x 1, Power cable x 1 , Fuse x1 ,Probe x1
DIMENSIONS & WEIGHT	225(W) x 91(H) x 290(D)mm
