Motor Torque Measuring System – TSP Series

Motor Torque Measuring System – TSP Series

The motor torque measuring system by MCP combines TSP-S dynamic torque sensors with TSP-M 3-in-1 torque meters to measure torque, speed and power in a single, integrated setup for motor testing and education.

Overview

The system consists of a dynamic torque sensor mounted in line with the motor shaft and a panel torque meter that reads and displays torque (Nm), speed (rpm) and calculated power (W). Ranges are matched across four variants (5, 10, 15 and 30 Nm) to suit different motor frames.

TSP-S Series – Dynamic Torque Sensors

• Models: TSP-5S, TSP-10S, TSP-15S, TSP-30S
• Max torque: 5 Nm / 10 Nm / 15 Nm / 30 Nm
• Working voltage: 24 VDC or ±15 VDC (per model)
• Shaft height (frame): 63 mm / 75 mm / 80 mm / 95 mm
• Dimensions (approx.):
  165×140×145 mm (5S),
  165×180×157 mm (10S),
  215×180×162 mm (15S),
  215×180×177 mm (30S)

TSP-M Series – 3-in-1 Torque Meters

• Models: TSP-5M, TSP-10M, TSP-15M, TSP-30M
• Torque range: 0~±5.00 Nm / 0~±10.00 Nm / 0~±15.00 Nm / 0~±30.00 Nm
• Speed range: 0~9999 rpm
• Power display: up to ~5235 W (5M) and ~9990–9999 W (10M/15M/30M)
• Supply / outputs: 24 VDC or ±15 VDC (per model)
• Adaptive pairing: 5M↔5S, 10M↔10S, 15M↔15S, 30M↔30S
• Dimensions (meter): 170×135×70 mm

Applications

• Motor test benches and R&D labs
• Educational and training setups for torque/speed/power
• Verification of motor performance and drive tuning

Technical Notes

• Match the sensor frame (shaft height) to the motor frame for proper alignment.
• Use precise couplings and alignment to minimise shaft load and measurement error.
• Route signal wiring away from power cables; use shielding where appropriate.

Models & Compatibility

TSP-5S / TSP-10S / TSP-15S / TSP-30S dynamic torque sensors paired with
TSP-5M / TSP-10M / TSP-15M / TSP-30M 3-in-1 torque meters provide matched ranges for torque, speed and power readout.

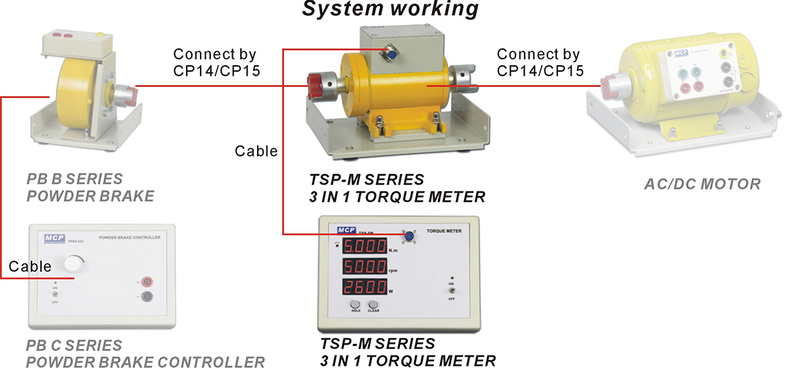

System Diagram

The diagram below illustrates the motor torque measuring system with an in-line TSP-S sensor and a TSP-M meter displaying torque, speed and power.

Summary

The TSP Series offers a practical, accurate way to measure torque, speed and power in motor testing. Combining matched sensors and meters, the system supports clean integration and repeatable results in laboratory and educational environments.
